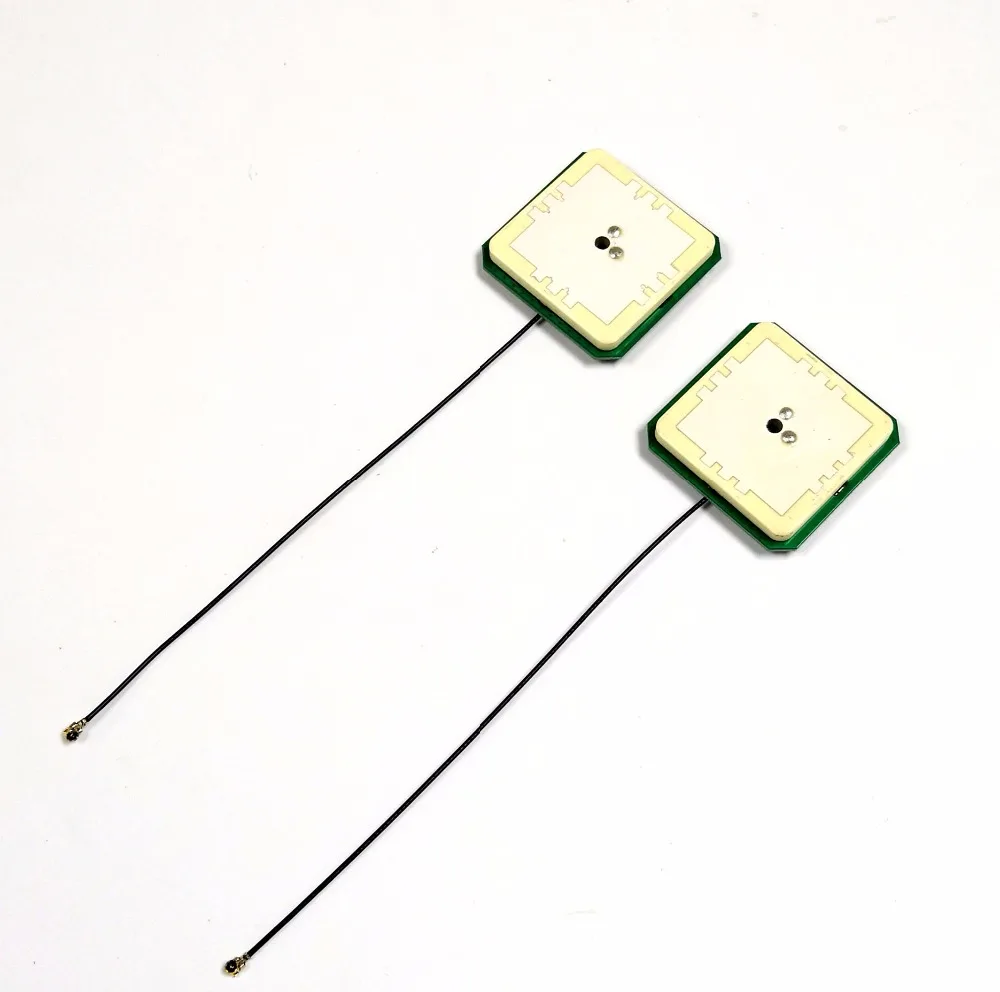

2Pcs high-quality GPS GLONASS BEI DOU three system GPS antenna 38DB high-gain, high-precision positioning GNSS RTK antenna

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $52.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

TOPGNSS BGL-4504 GNSS antenna is a support for GPS L1, BD B1 and GLONASS L1 GNSS antenna, used in high-precision car positioning and navigation, high-precision GNSS timing, vehicle external navigation on the location requirements of precision applications. The antenna uses a multi-feed point design to improve the accuracy of the measurement. Built-in low-noise amplifier module, the filter filter interference signal to ensure that the harsh electromagnetic environment to work properly. Small size, light weight.

Application schematic diagram: schematic diagram applied toUBLOX- NE0-M8P-0-10 module Hint: (shipping list only has a separate GNSS antenna. The M8P module in the picture is only used for application demonstration reference material).

Frequency Range; 1558MHz-1615MHz

Impedance:50Ohm

Polarization :(RHCP)

Axial Ratio:<3dB

(Elevation Coverage)360°

(VSWR) ≤2.0

(Gain of Antenna) 4.5dBi

(LNA Gain) 38dB±2dB

(Noise Figure) ≤1.5dB

(VSWR) ≤1.5

(VSWR) ≤1.5

(Gain Flatness) ±1dB

(Pout at 1dB Gain Compression Point) ≥0dBm

(LNA Drain Voltage) 3V-15VDC

(LNA Current Consumption) ≤35mA

(delay) <10ns

(Dimension)45×45×8.8mm

(RF output Connector) IPX

RF Cable length: 14 CM

(Shockproof Grade) IK08

(Operating Temp.) -40℃~+85℃

(Storage Temp.) -40℃~+85℃

Delivery package list: GNSS antenna 2PCS
