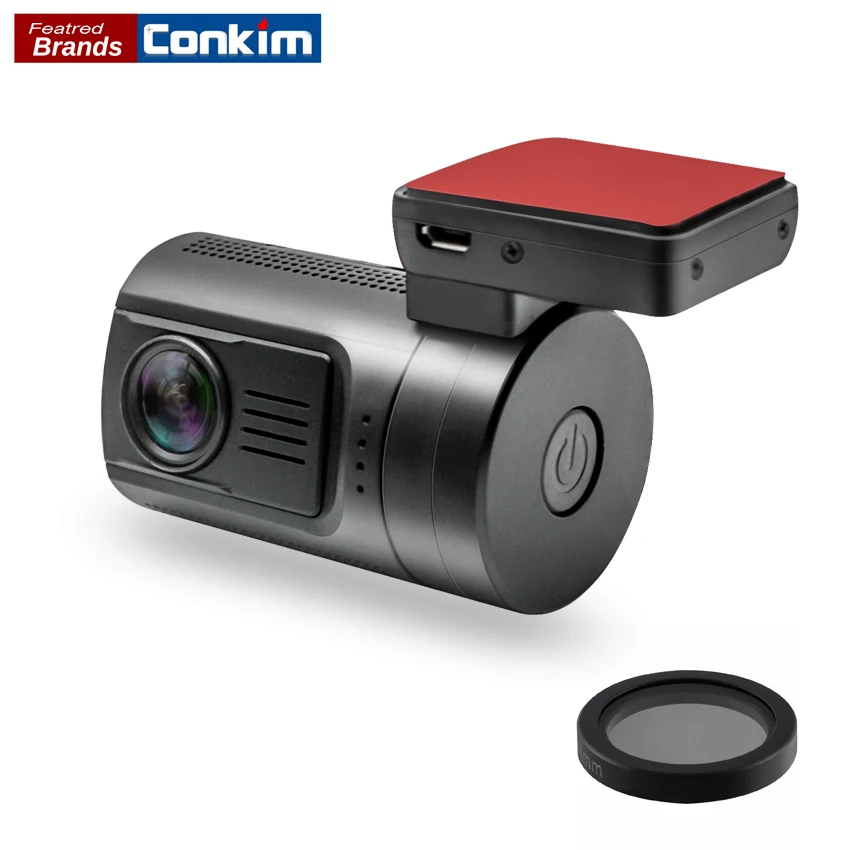

Mini DVR Car Camera Dash Cam 0806S Ambarella A7LA50 1296P Super HD GPS Video Recorder Hidden Registrator Camera Capacitor w/CPL
Ambarella A7LA50 Chipset, OV4689 4MP CMOS sensor Video Resolution: 2560*1080@30FPS, 1296P@30FPS, 1080P@45FPS, 1080P@30FPS HDR, 720P@60FPS, 720P@30FPS
GPS/SPEED/DRIVER NUMBER Stamping The dash camera can record your driving trace and stamp the GPS data, speed and stamping the speed data, driver number or customized phrase on video.
Loop Recording The camera supports automatically loop recording when the card is full.
(Note: When the camera show “card is limited for video record or card is error”, please for the memory card on computer; Because your card maybe full due to G-sensor is open, video files are locked and they can’t format or delete through camera)
LDWS DETECTION The camera will warn when it detects a lane departure, including normal planned lane departures FCWS (Forward Collision Warning System) share the same switch with LDWS (Lane Departure Warning System)
Support HDMI and AV-out transmission
Built in G-sensor The G-sensor is used to detect the 3-axis impacting forces (vibration acceleration). If any impact over the threshold value is detected, the current recording file will be locked to avoid being over-writen. Locked video files must be format on computer, they are unable to delete or format through camera. So, when your camera shows “Card is limited for video record” Please check your memory card on computer, and format through computer.
Sticker Mount with 2 °wedges +4 ° wedges When you need the camera offset from top center of windshield, you can use the wedges to adjust the camera view direction. There are two wedges attached in accessories bag, one is 2 °angle and another is 4 °angle. With those you can mount the dash camera at a 2 °,4 ° or with both together 6° offset location.
CPL filter (Optional) Reduce the relection from shiny surface like vegetation, sweaty skin, water surface, glass, road and let the natural color come through at the same time. Some of the light coming from the sky is also polarized to give a more dramatic sky and high contrast clouds, rendering outdoor scenes crisper with deeper color tones. Align the white line on CPL with the dot on camera and rotate for best reflection reducing effect. CPL filter is highly recommend for Mini 0806s camera.
Built in Super Capacitor, no battery Mini 0806s with super capacitor tech. it can’t be turned on until is recharged by car charger. Safty confficient is higher than Mini 0806. It’s working temperature -25℃~65℃ More stable in Winter or Summer. Longer lifetime than battery version.
The parking guard hardwire kit can be used as a high quality common hardwire kit as there is no Parking Guard function on 0806s camera. Not include, you should buy extra
Mini 0806S is upgrade version from Mini 0806, using same housing but different motherboard. Main difference as followed:
- Remove a micro SD card
- Reduce RF interference
- Improve GPS moduel to increase GPS signal
- Add AV-Out
- Add Reset Button
- Using super capacitor, not built in battery, more safer in hot weather
- Improve camera stabilization
- Low voltage protection
Compare with old version mini 0806
Micro SD card slot A is removed on Mini 0806s, add AV-out. R button: Reset button
GPS pin connetor is improved so that increase the GPS signal and quality is more reliable.
Capacitor VS Battery Mini 0806s with super capacitor tech. it can’t be turned on until is recharged by car charger. Safty confficient is higher than Mini 0806. It’s working temperature -25℃~65℃ More stable in Winter or Summer. Longer lifetime than battery version. Mini 0806 built in 3.7V 200mAhlithium battery. It can work for few minutes constantly if it is not recharged by car charger. Battery is easy to be aging if it’s too hot in Summer for long time; and in winter, it maybe frozen.
Motherboard photo for reference:
Patent industrial design Ultra MINI size Display Size: 1.5 inch TFT Cinema Mode 2560*1080 (21:9) 30fps FullHD 1296P@30fps, 1080P@45fps, 720P@60fps Support HDR (High-Dynamic-Range) for superior low light performance, 1080P@30fps HDR Video Format: MOV (H.264) Camera Pixel: 4 Million Pixel CMOS 135 degree Viewing Angle Camera rotating 160 degree for reverse mounting Built-in G-sensor Support HDMI and AV-out Function, connect to TV for Video and Photo viewing Support Route Tracking via GPS (with GPS mount base) Support 128GB Maximum TF cards recording (Not include) Support Movement Detection Support LDWS and FCWS Seamless Link Loop Recording Support Video Protection, prevent overwrite important video Support Audio On/Off while Video Recording Battery: 5V 2.5F super capacitor Adapter: MicroUSB 5PIN Port
|Lens Pixel||1/3″ color CMOS 4 MegaPixel (2688*1520) Image Sensor|
|Lens Visual angle||Wide angle 135 degree|
|Lens optical parameter||6G, F2.0, f2.5mm|
|Lens rotation angle||160 degree|
|Lens Object Distance||0.5m~infinity|
|Video resolution and transfer rate||2560*1080@30FPS, 1296P@30FPS, 1080P@45FPS, 1080P@30FPS HDR, 720P@60FPS, 720P@30FPS|
|Video compression format||H.264|
|Picture pixels||Support 4MP MAX|
|Sound record||Synchronous video and sound recording or shut sound recording|
|Sound Recording area||20m2|
|Display screen||1.5 inch HD TFT|
|External memory card||≥TF-Class6|
|Capacity of memory card||8G-32GB (official, can use 64 and 128, SanDisk is not recommended)|
|Battery Capacity||5V 2.5F super capacitor|
|MIC and Speaker||yes|
|HDMI interface||Yes, CTS1.3|
|USB interface||USB2.0 high-speed transmission|
|Circular loop recording||Support|
|G-sensor Gravity Detection||Support|
|GPS track||YES, include|
|LDWS (Lane Departure Warning System)||Support|
|Wide-angle Distortion Correction||Support|
|Night vision LED||no|
|Auto turn on and off||yes, auto turn on when engine start, auto turn off after engine cut off|
|Video Player software||Registrator Viewer/Media player/KM player (codec pack needed)|
|Support Operation system||windows/Imac|
|USB Disk function||Support|
|build in Language||Support multinational languages|
All Dear friend,Pls read me before you make order.
1 . Car DVR needs for outdoor use, search for satellite positioning! And when running Car DVR , connect the original car charger. 2 . we will declare the lower price on the invoice/bill to help avoid custom duty. If the parcel get strict inspected by custom. You still need to pay tax to clear custom. We won`t bear the customs taxes.If you have special requests,please contact us. 3 . In the option of shipment, if you choose DHL,not include DHL remote cost, custom duty, or any commission charged by dhl for custom clearance or warehouse storage cost. 4 . Please open the parcel in post officer`s presence,If the parcel damaged or empty(stolen),please ask the post office to provide official document,especially the claim request paper. 5 . If you have any problem with your equipment, pls check our FAQ link first,it may can help you solve the problem quickly.>>: 6 . About the Shipment,pls check this link.>> 7.About return and warranty policy, pls check this link. >>
