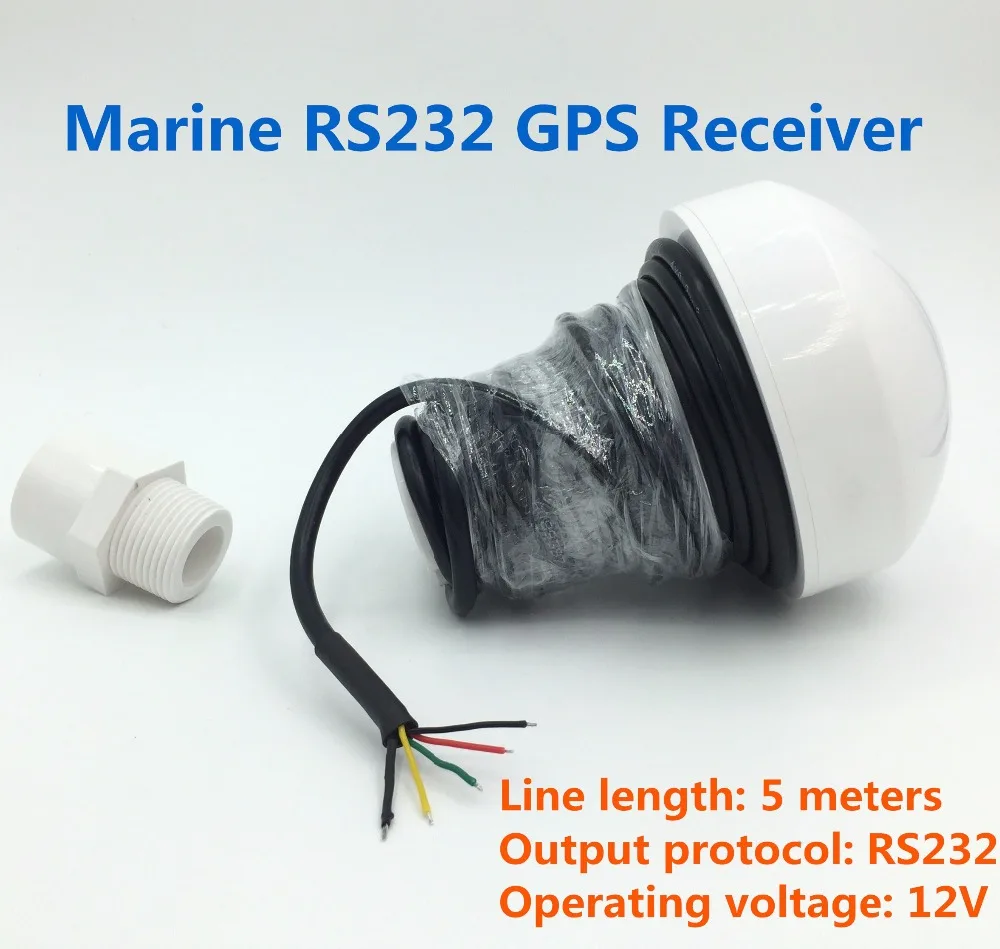

for marine 12V RS232 GPS receiver,RS-232 GNSS GPS receiver,Mushroom-shaped case,4800 baud rate,module with antenna 5 meters
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category
UBLOX7020 gnss chip Design Line length: 5 meters cable diameter: 5mm Using high-quality shielded cable design, support for DIY connector. Applicable to marine navigation, 12V, GNSS GPS receiver, RS232, RS-232 GPS receiver, mushroom box, 4800 baud rate, antenna module integrated design. Default GPS mode Built-in Flash, can support change baud rate, NMEA data protocol
Features：
|
Parameter |
Specification |
|
|
Electrical Characteristics |
Chipset |
u-blox G7020-KT |
|
Receiving Format |
GPS,QZSS and SBAS |
|
|
Frequency |
GPS L1,SBAS L1 |
|
|
Channels |
56 Searching Channel |
|
|
Sensitivity |
Tracking |
-162dBm |
|
Reacquisition |
-160dBm |
|
|
Cold start |
-148dBm |
|
|
Accuracy |
Position Horizontal |
2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) |
|
Velocity |
0.1m/sec 95% (SA off) |
|
|
Timing |
1us synchronized to GPS time |
|
|
Acquisition Time |
Cold Start |
29s |
|
Warm Start |
25s |
|
|
Hot Start |
1s |
|
|
Data and Update Rate |
Support Rate |
4800bps to 921600bps,Default 9600bps |
|
Data Level |
Default RS-232 level |
|
|
Data Protocol |
Default NMEA-0183 |
|
|
Concurrent GNSS |
1Hz-10Hz,Default 1Hz |
|
|
Operational Limits |
Altitude |
50,000m Max |
|
Velocity |
515m/s Max |
|
|
Acceleration |
Less than 4g |
|
|
Power consumption |
VCC |
DC Voltage 12V,Typical: 12V |
|
Current |
Capture 65mA/5.0V |
|
|
Mechanical Specifications |
Dimension |
ΦO=96mm*124mm |
|
Weight |
235g |
|
|
Connector |
||
|
Cable Length |
||
|
Environment |
Operating temp |
-40 °C ~ +85°C |
|
Storage Temp |
-40°C ~ +85°C |
|
GNSS Mode Settings:
Baud rate setting:
Refresh frequency setting: 10HZ
If you have special needs, please contact us!
