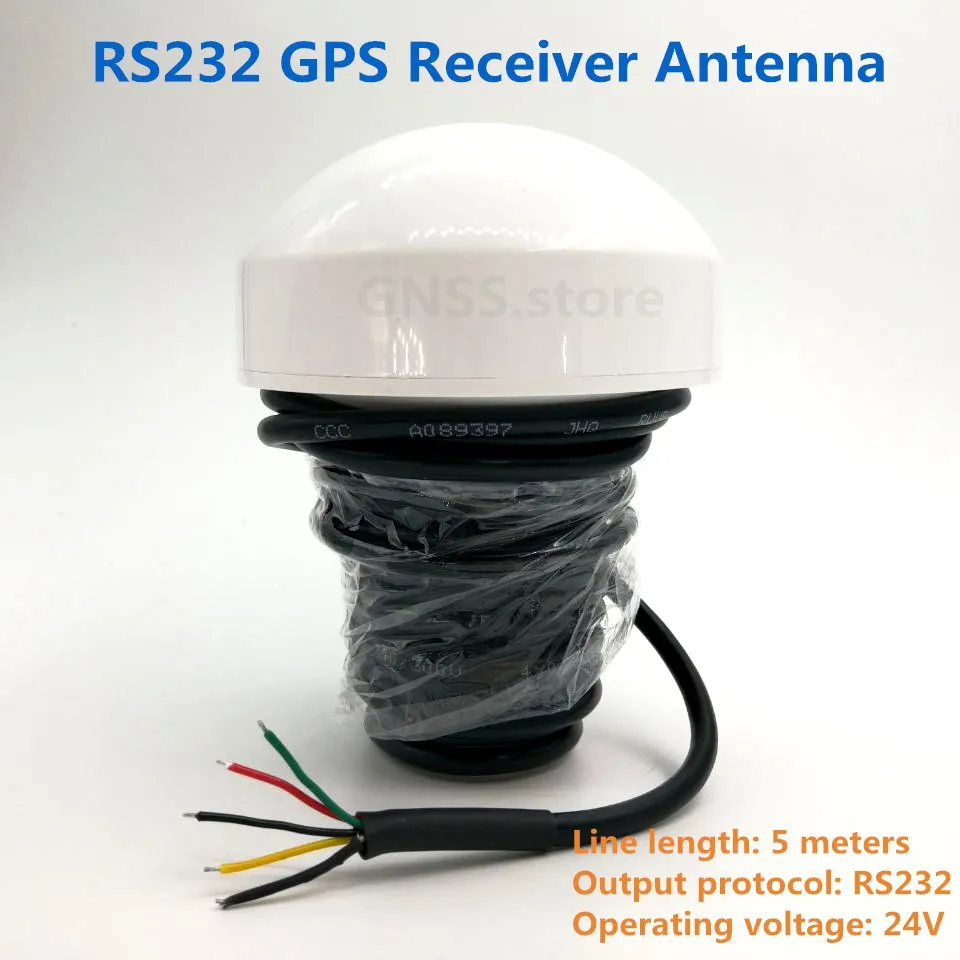

for marine 24V,GPS receiver,RS232,RS-232 GPS receiver,Mushroom-shaped case,4800 baud rate,module with antenna 5 meters

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $35.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

UBLOX7020 gnss chip Design Line length: 5 meters cable diameter: 5mm Using high-quality shielded cable design, support for DIY connector. Applicable to marine navigation, 24V, GNSS GPS receiver, RS232, RS-232 GPS receiver, mushroom box, 4800 baud rate, antenna module integrated design. Default GPS mode Built-in Flash, can support change baud rate, NMEA data protocol Features:

Parameter

Specification

Electrical Characteristics

Chipset

u-blox G7020-KT

Receiving Format

GPS,QZSS and SBAS

Frequency

GPS L1,SBAS L1

Channels

56 Searching Channel

Sensitivity

Tracking

-162dBm

Reacquisition

-160dBm

Cold start

-148dBm

Accuracy

Position Horizontal

2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity

0.1m/sec 95% (SA off)

Timing

1us synchronized to GPS time

Acquisition Time

Cold Start

29s

Warm Start

25s

Hot Start

1s

Data and Update Rate

Support Rate

4800bps to 921600bps,Default 9600bps

Data Level

Default RS-232 level

Data Protocol

Default NMEA-0183

Concurrent GNSS

1Hz-10Hz,Default 1Hz

Operational Limits

Altitude

50,000m Max

Velocity

515m/s Max

Acceleration

Less than 4g

Power consumption

VCC

DC Voltage 24V,Typical: 24V

Current

Capture 65mA/24.0V

Mechanical Specifications

Dimension

ΦO=96mm*124mm

Weight

235g

Connector

Cable Length

Environment

Operating temp

-40 °C ~ +85°C

Storage Temp

-40°C ~ +85°C

If you have special needs, please contact us!
