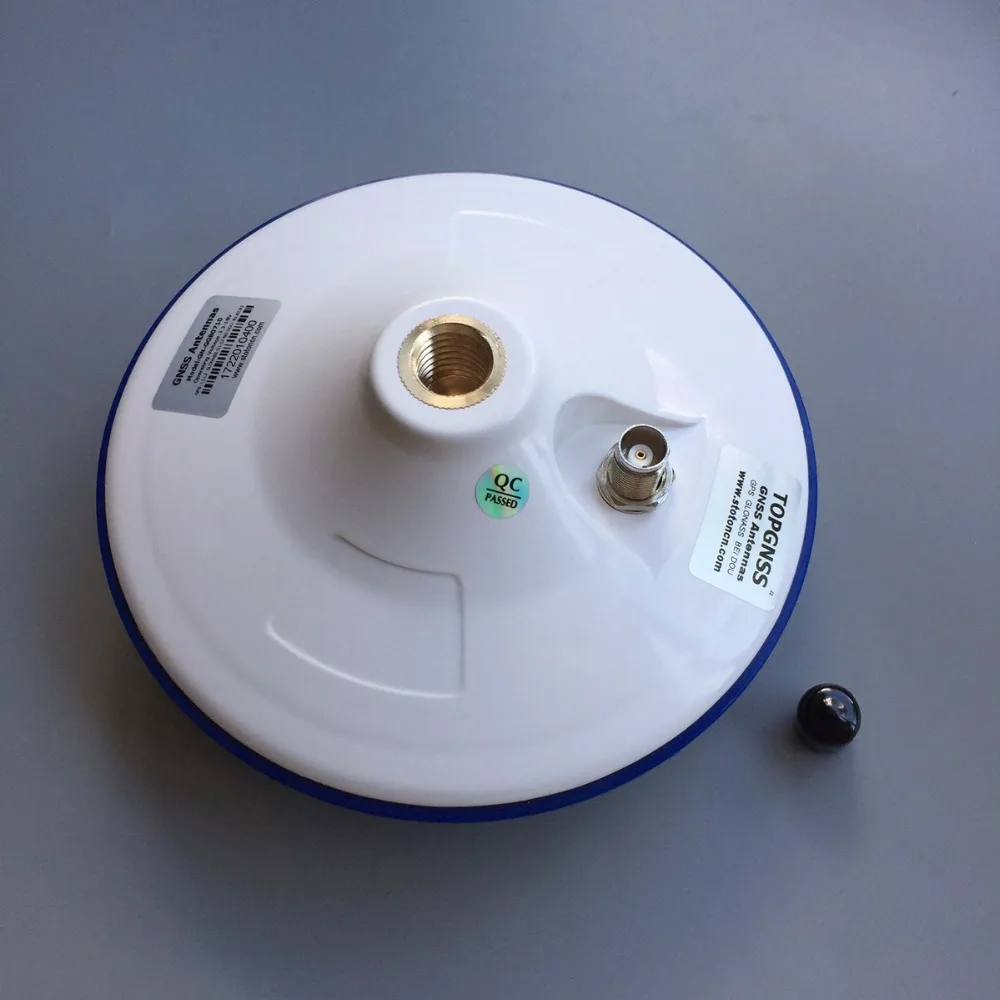

NEW GNSS measurement antenna, GPS GLONASS dual-mode work, high increase, waterproof, for RTK measurement, GNSS mapping.Cable 5M

80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $135.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

GNSS.Store Promotional offers sold in 100 sets. If you have special needs, buy more quantity, you can always contact us, if you are very satisfied with our products, please give us 5 points evaluation, thank you! This product is a complete set of sales containing: GNSS receiving antenna 1PCS TNC connector 5 m cable 1PCS Strongly fixed magnet chuck 1PCS Stainless steel threaded rod 1PCS

High precision measurement of GNSS antenna

Support: GPS / GLONASS / three satellite system. Features: Integrated GPS L1 & L2 and GLONASS G1 & G2 3 system seven-band measurement antenna, can be widely used in geodesy, bridge construction, marine survey, underwater terrain measurement and other occasions. The antenna uses multi-feed point design to ensure that the antenna phase center and geometric center coincidence, improve the accuracy of measurement. Built-in low-noise amplifier module, the use of pre-and multi-stage filter filter interference signal to ensure that the normal work in harsh electromagnetic environment. Small size, light weight.

(1)antenna characteristics:

(Frequency Range)

1555MHz~1615MHz/1198MHz~1278MHz

(Impedance)

50Ohm

(Polarization)

(RHCP)

(Axial Ratio)

<3dB

(Elevation Coverage)

360°

(VSWR)

≤2.0

(Gain of Antenna)

5dBi

(Phase Center Error)

±2mm

2.low noise amplifier indicator

(LNA Gain)

42dB

(Noise Figure)

≤1.5dB

(VSWR)

≤1.5

(VSWR)

≤1.5

(Gain Flatness)

±1dB

(Pout at 1dB Gain

Compression Point)

≥0dBm

(LNA Drain Voltage)

3.3-18VDC

(LNA Current Consumption)

≤45mA

(delay)

<5ns

3.structural characteristics

(Dimension)

145×60mm

(RF output Connector)

TNC-C-K

(Mounting Method)

5/8-11 Threaded installation

(Waterproof Grade)

IP67

(Shockproof Grade)

IK08

4. working environment

(Operating Temp.)

-40℃~+85℃

(Storage Temp.)

-40℃~+85℃

5.antenna size structure (unit: mm)Packing list:

Included:1PCS GNSS antenna.

If you have special needs, buy more quantity, you can always contact us, if you are very satisfied with our products, please give us 5 points evaluation, thank you!
