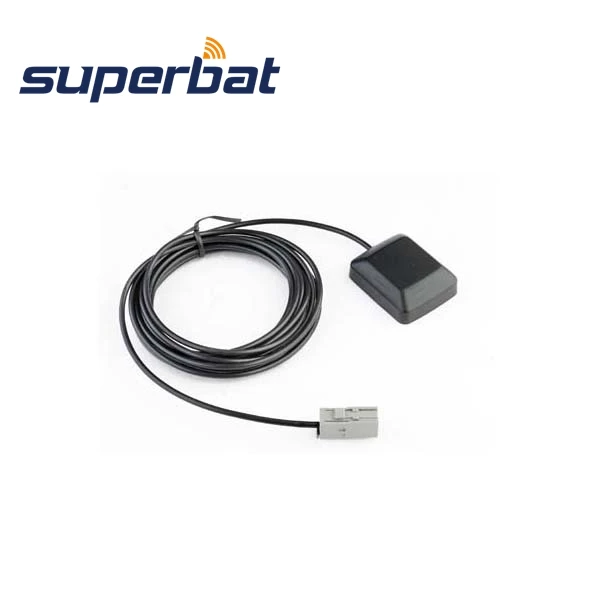

Superbat GPS Navigation Antenna for Mercedes Command Alpine GT5-1S Car HRS GT5-1S Plug 1575.42MHz Aerial Siganal Booster 3M

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $11.40 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

GPS Navigation Antenna for Mercedes Command Alpine GT5-1S Car HRS GT5-1S Plug 1575.42MHz Aerial Siganal Booster 3M Cable

100% Brand NEW high quality

Characteristic:

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0 Polarization RHCP

(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

(iii)Mechanical
Weight <100gram
Size :45x36x14mm
Cable :RG174 3 meter / Contact us for other length
Connector:HRS GT5-1S Plug default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black

(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof

(V) FEATURES:

Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APPLICATIONS:

Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigation

GPS antenna with HRS GT5-1S compatibility:

Alpine Navigations system (Not for Alpine nve-871a)

Acura Navigation
Alpine Navigation
Clarion Navigation
Ford 9000 VNR Navi
Ford Denso 7 Zoll Touchscreen Navi
Grundig Navigation
Honda Navigation
Magnetic
Marelli
Mercedes Comand Serie ( A 203, 208, 210, 230, 220, 820, 463 )
Nissan XANAVI
Panasonic
Pioneer ( AVIC 505 )
Suzuki Navigation
Volvo Hu 1205

Kenwood DDX5022
Kenwood DDX5032
Kenwood DDX7032
Kenwood DDX812
Kenwood DNX5120
Kenwood DNX7120
Kenwood DNX7220
Kenwood DNX7320
Kenwood DNX8120
