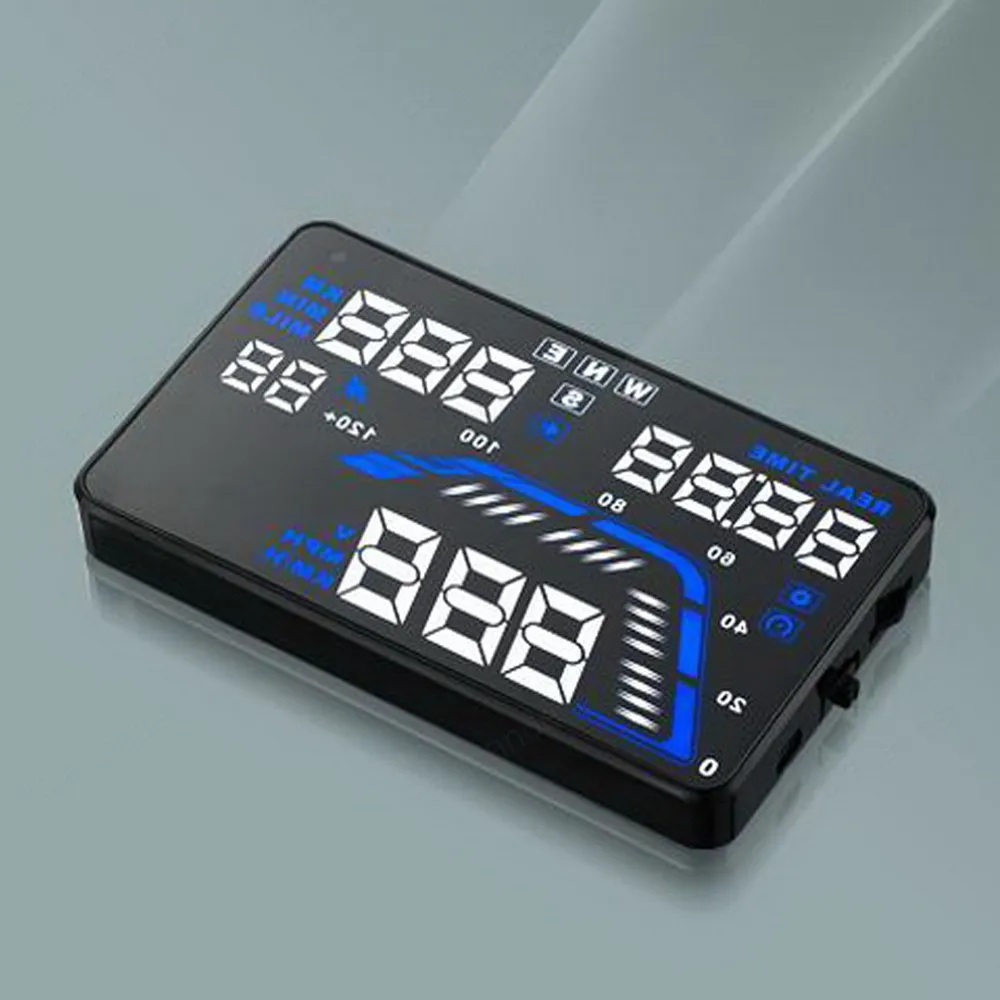

Universal 5.5 inch HD car head up display Overspeed Warning with GPS Windshield Projector Multi-color Auto HUD display Q7

80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $39.72 / piece
Sale Price:  US $37.34 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:




























Head Up DisplayUser ManualThank you for purchasing our HUD. This product is for drivers’ safety, especially in high-speed driving at night, HUD can keep driver eyes on the road and can decrease car accident. HUD can project the important information (such as speed) onto the windshield, it can help inexperienced novice to control their speed and to avoid speeding violation in the speed limit road. More importantly, it enables the driver instantly read the number in great vision and always make drivers eyes on the road in clear mind.

Our HUD can display many useful information, and allows you to experience the speed and also to ensure your driving safety and driving pleasure.Our HUD uses the latest stable integrated circuits, all indexes are in line with the standards. And our HUD has unique and elegant shape, smooth lines, thin body.

Before you using our HUD, please read the instructions in detail.

HUD main features

1. Apply to all cars in the world. Plug and Play.

2. 5.5” screen and high-definition display

3. Multi-color design makes the screen more abundant and easier to read

4. The use of nano-technology to eliminate unwanted reflections and can make display information more sharper.

5. Display rich content: speed,driving direction,driving time, driving distance,real time, satellite number, altitude,speed alarm,free switching between kilometer and mile

6. Auto power on and off with vehicle started and shutdown, effective protection of the car battery; while retaining the manual switch mode, and more easy to control HUD.

7. Automatic and manual brightness adjustment mode, driving without glare.

HUD Button function

1.USB interface, to contact the vehicle OBD interface.

2.Button for power on and off

3. Wave button: Up button (turning the button to upside),OK button(pressing the button vertically),Down button (turning the button to downside)

HUD display information

1 :real time icon

2 :display driving time and altitude

3 :function setting icon

4 :speed alarm

5 :speed

6 :driving direction and buzzer mark

7 :driving distance(KM/MILE) and driving time(Min)

8 :speed and voltage

9 :unit of speed and voltage

10:light sensor

11:unit of driving distance and driving time

12:Satellite icon

13:satellite number

14:speed icon

HUD installation

Put HUD on non-slip mat and then place on the dashboard. Connect one side of USB cable with HUD interface and connect the other side of USB cable to the car cigarette lighter. Then start the engine, LED will light, satellite icon will flash and HUD will search the satellite signal, HUD will work.

Reflection film installation

Please Note: HUD project the display information on the car front windscreen , because the windscreen is double, which will make double image on the windscreen when display.The double image of car will be different.If you can see clear the display information, then there is no need to use the reflection film. If there is a double image, then please use the reflection film.

First, please put the supplied non-slip mats in front of the dashboard, and then put the HUD on it.

Second,please stick the reflection film on the windscreen.

The reflecting film should be pasted right above the host machine and it should be able to reflect the whole display screen.

Methods of pasting the film:

1. Spray some water on the place that the film will be pasted on,and then use a dry towel to clean it;

2. Tear off the back side(marked 1) of reflection film,then paste it to the right place.

3. After you have adjusted the location well, you can use a scratch board or something else flat to slick the film and squeeze the water inside out until there is no bubble or water in it.

4. Tear off the front side (marked 2) of the reflection film. If the film cannot display the whole information, please adjust the non-slip mat.

Time adjustment

Please confirm the timezone of your country for the first time using.(the default timezone is GMT+8). When connect HUD and power on, long press the wave button vertically for 5s to enter into the setting menu.Then short press 6 times, the menu display number 6, and the parameter display 8,upside or downside the wave button to adjust to your country timezone,long time the wave button for 5s to back to the display interface.

HUD display number

country

timezone

0

England,Ireland,Iceland,Portugal

GMT

1

Norway, Sweden, Denmark, Poland, Germany, France, theNetherlands, Spain, Italy

GMT+1

2

Finland, Belarus, Ukraine, Romania, Turkey, Israel,Egypt, South Africa

GMT+2

3

Russia, Saudi Arabia, Bahrain, Kenya, Iran

GMT+3

4

Mauritius, United Arab Emirates, Afghanistan,Seychelles

GMT+4

5

Mauritius, United Arab Emirates, Afghanistan,Seychelles and Pakistan, Turkmenistan, Sri Lanka, India

GMT+5

6

Bangladesh, Kazakhstan, Bhutan, Nepal

GMT+6

7

Vietnam, Laos, Cambodia, Thailand, Indonesia

GMT+7

8

China, Malaysia, Singapore, Philippines,Hong Kong, Taiwan, Macau

GMT+8

9

Japan, South Korea

GMT+9

10

Australia, Guam

GMT+10

11

Solomon Islands, Vanuatu

GMT+11

12

New Zealand,Fiji

GMT+12

13

Azores

GMT-1

14

Mid-Atlantic, Cape Verde

GMT-2

15

Brazil, Argentina, Uruguay

GMT-3

16

Venezuela, Bolivia, Paraguay, intelligence

GMT-4

17

Canada, Panama, Cuba, New York

GMT-5

18

Mexico

GMT-6

19

Salt Lake City

GMT-7

20

California, San Francisco, CA

GMT-8

21

East Alaska

GMT-9

22

Hawaii

GMT-10

23

Samoa, Midway

GMT-11

HUD setting

HUD display information is from satellite GPS , because when producing car, there is a difference between vehicle dashboard and satellite GPS calculated value , then you can enter the setup mode to fine-tune the HUD display value, in order to achieve exactly the same value as dashboard. We have adjusted HUD according to the general test values at the factory, if you find HUD display information is different from dashboard,then make the following adjustments:

1.Long press the wave button vertically for 5s

Please enter into the setting mode,there are three button for wave button: Up button (turning the button to upside),OK button(pressing the button vertically),Down button (turning the button to downside) , after enter into the setting mode, press the OK button vertically one time, the menu will increase one. Turning the upside button or downside button to increase or decrease the parameter. After finish the adjustment, Long press the wave button vertically for 5s to return to the display interface.

Enter to the setting mode:

The parameter is as below:

Menu

Parameters

Adjustment range

Explanation

Default

0

Speed

50-150

Adjustment range50%-150%

107

1

Speed alarm

50-5000

Adjustment range50%-150%

120

2

Brightness adjustment

0-2

0 is the automaticadjustment; 1 is the darkest and 2 is the brightest.

0

3

Speed unit

0-2

0 is KM, 1 is Mile,2is voltage

0

4

Function switch

0-2

0 is KM,1 is drivingtime,2 is Mile

0

5

Driving time andaltitude switch

0-1

0 is driving time,1 isaltitude

0

6

timezone

0-23

0-23 timezone

8

7

Start referencevoltage

110-150

This is the auto poweron and off voltage of HUD, and no need to set

132

8

Restore to factorysetting

0-1

Set to 1,vertically press theOK button for 5s, then return to the display interface.

0

2.Vertically short press the OK button:

Switch the display information,e.g. KM, driving time(MIN),Mile

3.Downside turn the wave button for 5s,the alarm buzzer icon will off, and downside turn the wave button for 5s again, the alarm buzzer icon will on.

4. Restore to factory setting: when HUD is power on, long press the wave button vertically for 5s to enter into the menu setting, short press to mean 8, and downside the wave button to parameter 1, and press the wave button for 5s to back to the display interface.

working voltage

DC8-18-24V

Working current

40mA

sleeping current

15mA

Compass precision

±1°

Speed range

0-400KM

Real time precision

The same as satellite

HUD size

13cm*7.8cm*1.5cm

12V car charger

1000mA,USB cable:1m

HUD weight

115g

Common Problems and Solutions of Q7

1.HUD do not display ,Without electricity

Reason: Check whether start the car engine or not . In order to prevent HUD consuming Car’s power,the starting voltage is set to 13.2V. As long as start car engine, the voltage reaches 13.2 volts and HUD can automatically turn on.Check if the car charger cable is connected tightly or not,try several times,check whether HUD master switch is on. If HUD still not display ,please try another car,analyze whether the car cigarette lighter interface is broken. if Broken,we suggest directly connect the car charger cable to the battery.

2.With electricity on,but only show car voltage,and auto-off after 20 seconds.

Reason:The start voltage is lower than 13.2V, HUD can not start normally. Check whether the car engine is turned on or not,If starting, then long press vertically the wave button for 5 seconds to Menu, short press vertically 7 times, the menu display 7, and up or down the wave button to adjust the voltage parameter from 132 to 128 or more desirable value.After finish adjustment,the starting voltage is 12.8V,exist by long press vertically wave button for 5 seconds,test again.

2.When drving,HUD repeatedly turned off, restart

Reason:The start voltage is lower than 13.2V, HUD can not start normally. long press vertically the wave button for 5 seconds to Menu, short press vertically 7 times, the menu display 7, and up or down the wave button to adjust the voltage parameter from 132 to 128 or more desirable value.After finish adjustment,the starting voltage is 12.8V,exist by long press vertically wave button for 5 seconds,test again.

4.After the car is turned off, HUD do not automatically turn off for a long time.

Reason: The default is 13.2V that HUD automatic turn off ,automotive voltage higher than 13.2 volts, HUD automatic turn on and automotive voltage lower than 13.2 volts, hud automatic turn off. HUD do not turn off , then long press vertically the wave button for 5 seconds to Menu, short press vertically 7 times, the menu display 7, and up or down the wave button to adjust the voltage parameter to 135 or more little higher.Do not be too high, preventing the car voltage can not reach the starting voltage of HUD.

5.Inaccurate speed

Solution:Switch on HUD,long press vertically the wave button for 5 seconds to Menu, short press vertically to menu 0, the default value is 107, and up or down the wave button to increase or decrease the value, and make the HUD show the same speed as dashboard,long press the wave button vertically to save and exist.

6.Over Speed Alarm

Solution:Default over speed is 120,if you wanna adjust bigger or smaller

Switch on HUD,long press vertically the wave button for 5 seconds to Menu, short press vertically one time to menu 1,default Parameter Value is 120,this mean HUD will alarm when your speed up to 120,then you could up or down the wave button to increase or decrease the value, After finish adjustment,exist by long press vertically wave button for 5 seconds.

7.Read not clearly under sunlight , has double image.

Solution:Check HUD body whether the protect film has been torn or not ,and then stick the reflection film on the front windshield.

You can also boot with power, vertical long press the dial button for 5 seconds to enter the menu option, press repeatedly until the menu display 7:00, the parameter settings allocated pulley 2, a vertical dial button is pressed 5 seconds after a successful exit is restored

You can also switch on HUD,long press vertically the wave button for 5 seconds to Menu, short press vertically 7 times to menu 7, and up or down the wave button to adjust the parameter to 2, long press the wave button vertically to save and exist,then HUD recovery successfully.

8.Wrong operation lead to crashes

Restore factory settings,(check detail on user manual)

Switch on HUD,long press vertically the wave button for 5 seconds to Menu, short press vertically 8 times to menu 8, and up or down the wave button to adjust the parameter to 1, long press the wave button vertically for 5 seconds to save and exist,then HUD recovery successfully.

9. Time display inaccurate

Time adjustment

Please confirm the timezone of your country for the first time using.(the default timezone is GMT+8). When connect HUD and power on, long press the wave button vertically for 5s to enter into the setting menu.Then short press 6 times, the menu display number 6, and the parameter display 8,upside or downside the wave button to adjust to your country timezone,long time the wave button for 5s to back to the display interface.

Plus 1:How to enter set up

A 7:Plug car charger cable -> Press switch and release after 5 seconds –> showing big 107 and small 0 (888 and 88 will show, other place is black) –>big 107 means set-up parameter, small 0 means the zero menu—press the big number to 117,small number to 1—press the big number to 100,small number to 2—recycling press to choose the parameter

2.HUD default menu and its corresponding parameter:

0-(107) 1-(120) 2-(0) 3-(0) 4-(0) 5-(0) 6-(8) 7-(132) 8-(0)
