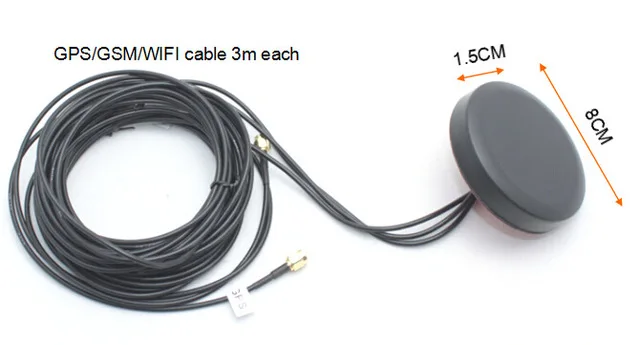

Upgrade gps gsm wifi car antenna module 3 in 1 Connector Gps + wifi +GSM Automobiles GPS Navigation with 3M cable each

60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $17.66 / piece
Sale Price:  US $15.89 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

welcome to our Smile shop

Car antenna gps Dielectric Antenna with WIFI GSM combination 3 in 1 antenna work for Gps +Wifi+GSM waterproof and easy mount

Upgrade gps gsm wifi car antenna module 3 in 1 Connector Gps + wifi +GSM Automobiles GPS Navigation with 3M cable each

(i)GPS Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP
(ii)GSM Antenna
Center Frequency(MHz):850/900/1800/1900
VSWR:2.0:1
Impedance(Ω):50
Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
(iii)Wifi Antenna
Frequency(MHz):2400-2500
VSWR ≤1.5
Gain(dBi):2.15
Impedance(Ω):50
Polarization:Vertical
(iv)LNA/Filter
LNA Gain(Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max
(v)Mechanical
Weight(gram )<240
Size(mm):70×70×14
Cable GPS(m):RG174 2,5 etc.
GSM(m):RG174 2,5 etc.
Wifi(m):RG174 2,5 etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Wifi:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Screw(Hole/Roof)
Housing:Black
(vi)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
